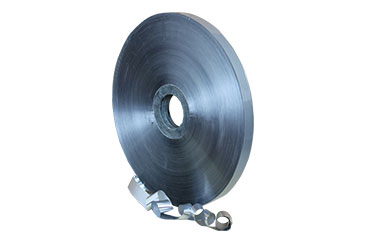

产品名称双面铝箔麦拉带

访问量:635

双面铝箔麦拉带aluminumpolyestertape(doubleside)
[产品说明]:采用两面软质铝箔与聚酯薄膜为原材,以凹版涂布进行复合,待铝箔麦拉熟成再分切卷收,其结构是两边各一层铝箔和中间一层聚酯薄膜复合而成(al/pet/al)。
productdescription:therawmaterialofaluminumpolyestertapeissoftaluminumfoilandapolyesterfilm,…

订购热线:13584263676

双面铝箔麦拉带

    Aluminum polyester tape (double side)

[产品说明]: 采用两面软质铝箔与聚酯薄膜为原材,以凹版涂布进行复合,待铝箔麦拉熟成再分切卷收,其结构是两边各一层铝箔和中间一层聚酯薄膜复合而成(AL/PET/AL)。

Product Description: The raw material of aluminum polyester tape is soft aluminum foil and a polyester film, compound with intaglio coating, slitting and rolling when aluminum foil polyester was done; the structure is a layer of aluminum foil in the two sides and a layer of polyester film in the middle. (AL/PET)


[应用方式]:  应用于无电磁场或静电干扰的电缆,如通信电缆、数据电缆、同轴电缆、网络电缆以及信号电缆的屏蔽,可搭配涂胶,铝箔麦拉模切后可用于组装屏蔽与接地。

Application: Apply to magnetic field with non-electromagnetic or precipitation static, such as communication cables, data cable, coaxial cable, internet cable and shielding of signal cable, can match with coating, it can be used in assemble shielding and grounding when aluminum foil polyester was cut.

一、主要技术指标:

Main specifications:

产品规格

Specification

组成

Composition

伸长率

Elongation (%)

抗张强度

Tensile strength (Mpa)

基重

Basis weight (g/m²)

剥离强度

Peel strength (N/cm)

铝厚

AL

麦拉厚

PET

铝厚

AL

32μm

7μm

12μm

7μm

35↑

6.3↑

61±10%

6.3↑

35μm

7μm

15μm

7μm

35↑

6.3↑

65±10%

6.3↑

36μm

9μm

12μm

9μm

35↑

6.3↑

74±10%

6.3↑

49μm

9μm

25μm

9μm

35↑

60↑

92±10%

6.3↑

55μm

12μm

15μm

12μm

35↑

60↑

94±10%

6.3↑

53μm

12μm

23μm

12μm

35↑

60↑

105±10%

6.3↑

61μm

15μm

25μm

15μm

20↑

60↑

122±10%

6.3↑

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other   special requirements can design according to customers

二、颜色:常见颜色为蓝色和银色,还可根据需要做成红色、绿色、金色等,还可以根据客户需要印字和印斜纹等。

Color: Common color is blue and silver, can also be made red, green, gold etc, according to customer’s needs, and can also printing and printed twill according to customer needs.

三、应用:主要应用于电脑线、通信电缆、高频信号线、射频线、同轴电缆等。

Application: Mainly used in computer line, communication cable, high-frequency signal lines, RF cable, coaxial cable, and so on.

四、电气特性:主要作为抗电磁干扰用,通常情况是在1-100MHZ,屏蔽衰减70dB左右时,用双面铝箔就可以达到。

Electrical characteristics: mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 70dB attenuation can be achieved with Mylar foil.

五、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

    Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
