热熔铝箔麦拉带

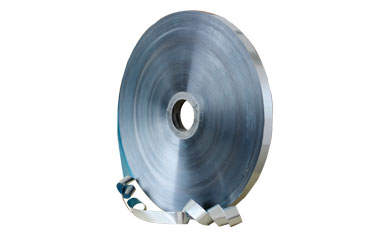

Heat sealed aluminum polyester tape

[产品说明]: 热熔铝箔麦拉又叫热融铝箔麦拉,分PE型热熔铝箔麦拉、PVC型热熔铝箔麦拉；采用热熔胶为MQ-40高分子聚合物，无毒无公害，符合最新版欧盟RoHS环保规章。另外一种叫自粘膜型热熔铝箔麦拉，采用正牌EAA自粘膜，保证能在较低预热温度下，具有良好的热熔粘结效果，且保持长期稳定。

Product Description: Heat sealed aluminum polyester tape also called hot melt aluminum polyester tape, divide in PE heat sealed aluminum polyester tape and PVC heat sealed aluminum polyester tape, made of hot melt adhesive macromolecular polymer MQ-40, non-toxic and harmless, accord with the latest version of the EU RoHS environmental regulations. Another is self adhesive aluminum polyester tape, made of real EAA self adhesive film, it has good effect of hot melt adhesive when the low temperature, and can keep the stability for a long time.

[应用方式]: 主要应用于电脑线、家用通信电缆、高频信号线、射频线、同轴电缆等。利用线材外披覆压出的热能产生粘着，加固牢度好，密合优异，后段加工简单。应用于多导体控制线材的干扰遮蔽，如信号线，同轴电缆，有线电视线材，Series　ATA排线或是局域网络电缆。

Application: Mainly used in computer lines, communication cables, high-frequency signal lines, RF cable, coaxial cable, and so on. Make use of thermal energy with out coating wire, good reinforce, excellent compactness, simple process. Apply to interference and shielding of multi-conductive control wire, such as signal wire, coaxial cable TV wire, series ATA wire or LAN cables.

一、主要技术指标：

Main specification:

热熔材质: MQ-40, Proprietary Formulated Co-polymer ；EAA自粘膜

Hot melt materials: MQ-40, Proprietary Formulated Co-polymer ；EAA self adhesive film

涂布厚度: 精密涂布可自3μ起至最大25μ（3克至25克/平方米）

Coating thickness: Precise coating 3μ-25μ (3g-25g/m2)

热反应温度: 摄氏110至135度

Temperature thermal reaction: 110°C-135°C

热封强度: 一般约为250至400克/20mm，特殊结构与强化配方可达1500克/20mm以上

Heat-Sealing strength: normal=250~400g/20mm, strengthened>1500g/20mm

二、颜色：常见颜色为蓝色和银色,还可根据需要做成红色、绿色、金色等。

Color: Common color is blue and silver, can also be made red, green, gold, etc, according to customer’s needs.

三、电气特性：主要作为抗电磁干扰用，通常情况是在1-100MHZ，屏蔽衰减80dB左右时，单独用双面铝箔就可以达到。

Electrical characteristics: Mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 80dB attenuation can be achieved with Mylar foil.

四、分切及包装：分切最小宽度为2mm，采用轴装形式；常规分切宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。

Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
