产品名称聚丙烯发泡带(PP发泡带)

访问量:1836

聚丙烯发泡带(pp发泡带)ppfoamtape
[产品说明]:pp发泡带以聚丙烯为主材质。以物理和机械发泡工艺制成。
productdescription:ppfoamtapeismainlymadeofpolypropylene.itprocesswithphysicalandmechanicalfoaming.
[应用方式]:适用于通讯电缆及屏蔽层、防水层等多股结构复合式线缆的绕包与填充。
application:appl…

订购热线:13584263676

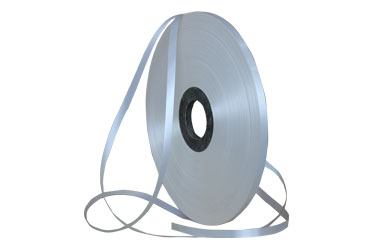

聚丙烯发泡带(PP发泡带)

PP foam tape

[产品说明]: PP发泡带以聚丙烯为主材质。以物理和机械发泡工艺制成。

Product Description: PP foam tape is mainly made of polypropylene. It Process with physical and mechanical foaming.

[应用方式]:  适用于通讯电缆及屏蔽层、防水层等多股结构复合式线缆的绕包与填充。

Application: Apply to wrapping and filling with communication cable and shielding layer, waterproof layer of composite cable with multiple structures.

一、主要技术指标:

Main specification:

产品规格

Specification

(mm)

基重

Basis weight

(g/m2)

拉伸强度

Tensile strength

(kg/m2)

断裂伸长率

Elongation atbreak

(%)

0.12±0.02

60±10

≥35

≥10

0.14±0.02

70±10

≥40

≥10

0.16±0.02

80±10

≥45

≥10

0.18±0.02

90±10

≥52

≥10

0.20±0.02

100±10

≥58

≥10

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:白色。

Color: White

三、电气特性:PP发泡带的主要特点是比重轻、纵向拉力好、环保。具有良好的耐热性,可用于超过120℃的场合

Electrical characteristics: The main character of PP foam tape is light weight, good longitudinal tensile, environmentally friendly. Has good heat resistance and can be used for more than 120℃.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging
