产品名称平纹聚丙烯带

访问量:657

平纹聚丙烯带(平纹pp带)plainpptape
[产品说明]:平纹pp带是其它各种电缆包带的良好替代品,它主要是在原有的工艺流程之上,溶入了适量的特殊改性材料,并进一步经过特殊的拉伸工艺,低温下不发硬,高温下热缩性好,使之用途更广泛,性价比更高。
productdescription:plainpptapeisagoodsubstituteforotherkindsoftape…

订购热线:13584263676

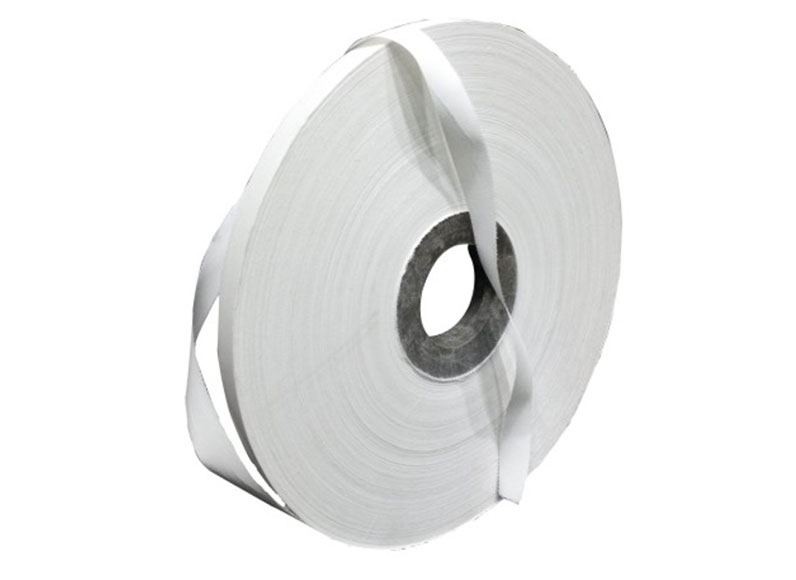

平纹聚丙烯带(平纹PP带)

Plain PP tape

[产品说明]: 平纹PP带是其它各种电缆包带的良好替代品,它主要是在原有的工艺流程之上,溶入了适量的特殊改性材料,并进一步经过特殊的拉伸工艺,低温下不发硬,高温下热缩性好,使之用途更广泛,性价比更高。

Product Description: Plain PP tapeis a good substitute for other kinds of tape for cables, it is mainly on the process of the original into the special modified materials appropriate, and further stretching through special process, low temperature is not hard, heat shrinkable under high temperature, the use of more extensive, more cost-effective.


[应用方式]: 主要用于电力电缆、控制电缆、交联电缆、矿缆、通迅电缆等。

Application: Mainly used for wrapping in power cable, control cable, cross-linked cable, mining cable, communication cable.


一、主要技术指标:

Main specification:

名称

Name

产品规格

Specification (mm)

基重

Basis weight (g/m2)

拉伸强度

Tensile strength

(Mpa)

断裂伸长率

Elongation atbreak

(%)

透明平纹PP带

0.06±0.01

60±10

≥150

≥30

普通白色平纹PP带

0.06±0.01

70±10

≥100

≥15

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:透明,白色,蓝色,绿色,红色。

Color: Transparent, white, blue, green, red

三、电气特性:产品比重轻,厚度薄,拉伸强度大,适中的伸长率,防潮,不吸水,电性能良好,有一定的阻燃性,单盘绕线长,剥离性,耐热性能良好等,且绕线紧密圆整。

Electrical characteristics: The product light weight, thin thickness, tensile strength, moderate elongation, moisture, non absorbent, good electrical properties, flame retardant properties, single coil length, stripping resistance, good heat resistance, and wound tightly round.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
