压花点子聚丙烯带（压花点子pp带）dotembossedpptape
[产品说明]:压花点子pp带是平纹pp带表面经过压花处理，增加了摩擦，在高速绕包时不易打滑脱落。具有良好的拉伸强度，且材料较为坚固，不会被铠装电缆钢带损坏。
productdescription:dotembossedpptapeisplainpptapesurfacebyembossingtreatment,increasedfriction,…

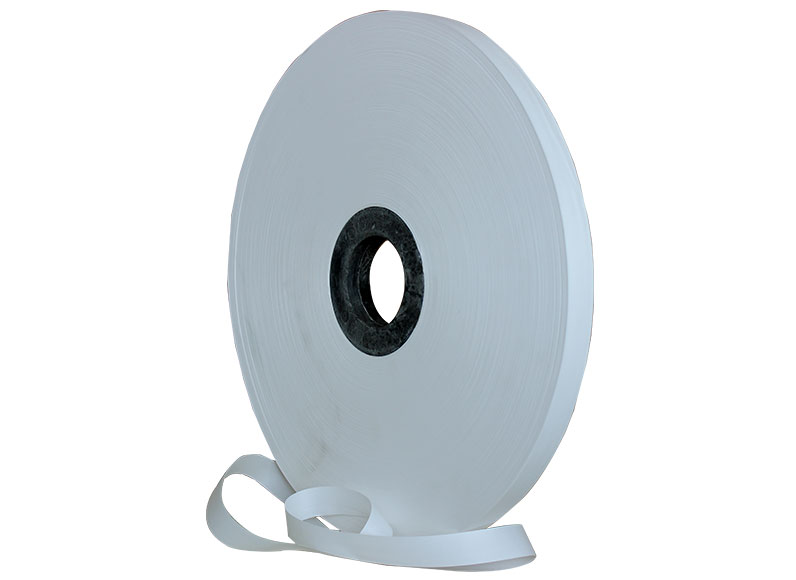

Dot embossed PP tape
[产品说明]: 压花点子PP带是平纹PP带表面经过压花处理，增加了摩擦，在高速绕包时不易打滑脱落。具有良好的拉伸强度，且材料较为坚固，不会被铠装电缆钢带损坏。
Product Description: Dot embossed PP tape is Plain PP tape surface by embossing treatment, increased friction, in high-speed winding, it is not easy to slip off. It has good tensile strength, and the material is stronger and will not be damaged by armored cable and steel band.
[应用方式]: 主要用于铠装电缆，电力电缆、控制电缆、交联电缆等。
Application: Mainly used for armored cables, power cables, control cables, XLPE cables and so on.
一、主要技术指标：
Main specification:
|
产品规格 Specification (mm) |
基重 Basis weight (g/m2) |
拉伸强度 Tensile strength (Mpa) |
断裂伸长率 Elongation atbreak (%) |
|
0.20±0.04 |
175±20 |
≥150 |
≥10 |
|
0.30±0.05 |
330±30 |
≥300 |
≥10 |
|
0.40±0.06 |
650±40 |
≥600 |
≥10 |
|
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers |
|||
二、颜色：白色。
Color: White
三、电气特性：产品比重轻，厚度薄，拉伸强度大，适中的伸长率，防滑，防潮，不吸水，电性能良好，有一定的阻燃性，单盘绕线长，剥离性，耐热性能良好等，且绕线紧密圆整。
Electrical characteristics: The product light weight, thin thickness, tensile strength, moderate elongation, skid proof, moisture-proof, non absorbent, good electrical properties, flame retardant properties, single coil length, stripping resistance, good heat resistance, and wound tightly round.
四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
