产品名称耐火云母带

访问量:747

耐火云母带micatapeforfire-resistantcables
[产品说明]:采用优质金云母纸、合成云母纸为基材,玻璃纤维布或无碳性高聚物薄膜(如pe)作为单面或双面补强材料,用有机硅树脂粘合,经高温烘焙、干燥后,再分切而成的带状产品。云母带主要用于耐火电缆的芯线与外皮之间,发挥耐火绝缘功能。
productdescription:withhighqu…

订购热线:13584263676

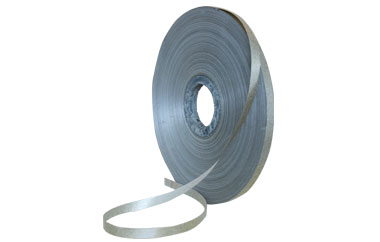

耐火云母带

Mica Tape for Fire-resistant Cables

[产品说明]: 采用优质金云母纸、合成云母纸为基材,玻璃纤维布或无碳性高聚物薄膜(如PE)作为单面或双面补强材料,用有机硅树脂粘合,经高温烘焙、干燥后,再分切而成的带状产品。云母带主要用于耐火电缆的芯线与外皮之间,发挥耐火绝缘功能。

Product Description: with high quality gold mica paper, synthetic mica paper as basic material, glass fiber or carbon-free polymer film (PE) as single-sided or double-sided reinforcement materials, adhesive with silicone resin, through baking, drying and slitting. Mica tape mainly used in fire-resistant cables between core and outer, play a role in resisting and insulating.

[应用方式]: 电缆防火云母带具有优良的耐高温性能和耐燃烧性能,云母带常态时具有良好的柔软性,适用于各种耐火电线电缆中主要耐火绝缘层。

Application: Mica Tape for Fire-resistant Cables has excellent heat resistance and flame resistance properties, mica tape has good flexibility normally, and suitable for main fire-resistant insulation with all kinds of fire-resistant wires and cables.

一、 主要技术指标:

Main specification:

名称

Specification

产品规格

Specification

抗张强度

Tensile strength (N/cm)

介电强度

Dielectric strength KV/mm

云母含量

Mica Content %

绝缘电阻

Insulation resistance (MΩ)

基重

Basis weight (g/m²)

适用耐火

线缆范围

range of application

单面金云母带

Phlogopite Mica Tape

single sided

140±5μm

50↑

10↑

60↑

1.0↑

185±10

GB12666.6-90B

双面金云母带

Phlogopite Mica Tape  double sided

140±5μm

70↑

10↑

60↑

1.0↑

210±10

单面合成云母带

Synthetic Mica Tape  single sided

140±5μm

50↑

10↑

60↑

1.0↑

185±10

GB12666.6-90A
GB12666.6-90B

双面合成云母带

Synthetic Mica Tape  double sided

140±5μm

70↑

10↑

60↑

1.0↑

210±10

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:三合一云母带为金色,合成云母带为白色。

Color: Triple mica tape for gold and synthetic mica tape is white.

三、电气特性:金云母带在温度800±50℃、电压600~1000V环境下可保证90分钟内不发生击穿;合成云母带在温度1000±50℃、电压600~1000V环境下可保证90分钟内不发生击穿。产品成份不含石棉、高温下不会产生有毒气体,具有耐酸碱、抗电晕、抗辐射的特性。成品干爽、无粘连性,具有良好的弯曲性、柔软性,在高速绕包电线电缆时抗张强度高。

Electrical characteristics: Phlogopite mica can ensure no breakdown occurs within 90 minutes under the temperature of 800 ± 50 ° c, voltage 600~1000V; Synthetic mica tape can ensure no breakdown occurs within 90 minutes under the temperature of 1000 ± 50 ° c, voltage 600~1000V. Ingredients doesn't contain asbestos, doesn't produce toxic gases at high temperature, with acid and alkali, Corona, radiation-resistant characteristics. Finished dry and non-adhesive, and has good bending properties, flexibility, high tensile strength at high wrapped wire and cable.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
