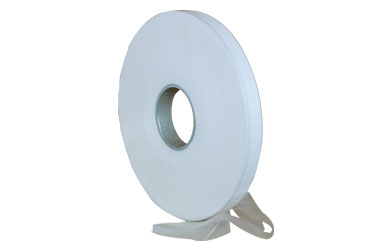

产品名称PTFE四氟薄膜带

访问量:693

ptfe四氟薄膜带ptfefilmtape
[产品说明]:f4四氟薄膜带,又叫纯特氟龙胶带,特氟龙薄膜胶带,纯铁氟龙粘胶带,聚四氟乙烯薄膜胶带,ptfe薄膜带,ptfe薄膜胶带。是一种低密度、标准级、可烧结的多微孔薄膜带。
productdescription:f4ptfetape,alsocalledpureteflontape,teflonfilmtape,ptfefilmtape.itisamicroporousfilm…

订购热线:13584263676

PTFE四氟薄膜带

PTFE film tape

[产品说明]: F4四氟薄膜带,又叫纯特氟龙胶带,特氟龙薄膜胶带,纯铁氟龙粘胶带,聚四氟乙烯薄膜胶带,PTFE薄膜带,PTFE薄膜胶带。是一种低密度、标准级、可烧结的多微孔薄膜带。

Product Description: F4 PTFE tape, also called pure Teflon tape, Teflon film tape, PTFE film tape. It is a micro porous film tape with low density, standard grade and sintered.

[应用方式]: 主要用于航空、航天、军工、雷达、电子通讯等领域的RF电缆、微波通信电缆、航空导线等的绕包绝缘层。

Application: Mainly used in RF cables, microwave communications cables, aerial wire wrapping and insulation layer in aviation, aerospace, military, radar, electronic communications and other areas.

一、 主要技术指标:

Main specification:

产品规格

Specification (μm)

常用密度

Density (g/cm2)

抗张强度

Tensile strength (Mpa)

伸长率

Elongation (%)

35±5

0.0084

5.52↑

15↑

50±5

0.0119

5.52↑

15↑

100±5

0.0239

7.65↑

15↑

150±5

0.0358

9.78↑

15↑

200±5

0.4777

11.72↑

15↑

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:白色或其它颜色。

Color: White or other color

三、电气特性:耐高低温,耐腐蚀性,低摩擦,耐磨损性,抗湿性,高绝缘。PTFE薄膜带经拉伸产生微孔,用它做导线绝缘层耐温等级高,柔软性好,屏蔽性能好,通讯频率高衰减低,热膨胀系数小。

Electrical characteristics: High and low temperature resistance, corrosion resistance, low friction, wears resistance, moisture resistance, high insulation. PTFE film tape produce micro porous by stretching,  temperature resistance rating is high if use it as conductive wire insulation layer, good softness, good shielding property, low attenuation, high frequency communications, low coefficient of-thermal expansion.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging
