产品名称半导电棉布带

访问量:620

半导电棉布带semi-conductivecottontape
[产品说明]:由棉布带经半导电胶浸渍烘干成型,纤维经过充分梳理,纵向强度高,电阻小。
productdescription:madeofcottontape,viasemi-conductiveadhesiveimpregnateddryandforming,fiberafterfullycarding,highlongitudinalstrength,lowresistance.
[应用方式]:适合用于矿用…

订购热线:13584263676

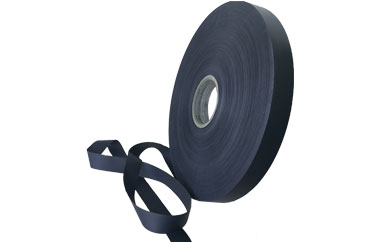

半导电棉布带

Semi-conductive cotton tape

[产品说明]: 由棉布带经半导电胶浸渍烘干成型,纤维经过充分梳理,纵向强度高,电阻小。

Product Description: Made of cotton tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.

[应用方式]: 适合用于矿用电缆和其它电缆的绕包和屏蔽作用。

Application: Suitable for wrapping and shielding of cables for mine and other cables.

一、主要技术指标:

Main specification:

产品规格

Specification (μm)

基重

Basis weight (g/m²)

拉伸强度

Tensile strength (N/cm)

伸长率

Elongation (%)

表面电阻

Surface resistance (Ω)

体积电阻

Volume resistance (Ω.cm)

瞬间稳定性

Short-term stability (℃)

长期稳定性

Long-term stability (℃)

100±30

90±10

100↑

20↑

1500↓

1*106↓

230

145

120±30

100±10

120↑

25↑

1500↓

1*106↓

230

145

140±30

110±105

140↑

25↑

1500↓

1*106↓

230

145

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:黑色。

Color: Black

三、电气特性:产品电阻小,具有半导电特性,易于各种电缆绕包和纵包加工。

Electrical characteristics: Little resistance, with semi-conducting characteristics, used for wrapping of all kinds of power cables.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
